FM13DT160 temperature core
RFID chip with built-in temperature sensor
RFID temperature tag
Cold chain temperature monitoring RFID tags
What is RFID temperature tag?
When leaving the warehouse, labels with startup time, temperature measurement interval, high and low temperature alarm and other parameters are affixed to the package.
The chip in the label will automatically measure the temperature according to the set program, and record it in the chip, and there is no human intervention in the whole transportation
When storing, all temperature data can be read by fixed card reader, handheld phone or NFC mobile phone, and can be uploaded to the background for data storage.
RFID temperature tag
RFID temperature tag workflow
Set the temperature measurement time through the APP, high and low temperature alarm, and accurately control the temperature in cold chain transportation
1
2

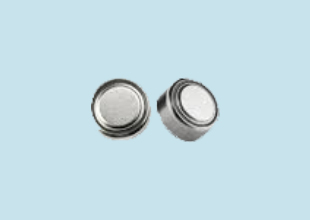

Paper cell
In active mode, the chip can use the built-in RTC to wake up regularly, start temperature measurement and record temperature data
3
UHF antenna
The UHF interface supports the ISO18000-6C protocol and reads label temperature data in batches
4
HF antenna
The high-frequency interface supports the ISO14443A protocol, the temperature measurement interval is set on the mobile phone, and the RTC temperature measurement is enabled
The main characteristics of RFID temperature tag

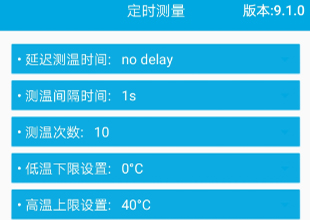

The mobile APP is configured with periodic temperature measurement
Turn on the timed temperature measurement by setting instructions on a single TAB in the APP from a phone with NFC

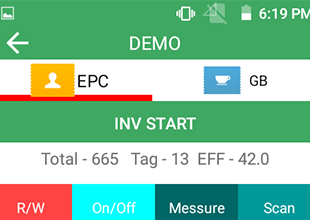

The handheld reader reads data in batches
RFID handheld reader reads labels in batches to obtain temperature measurement data during transportation

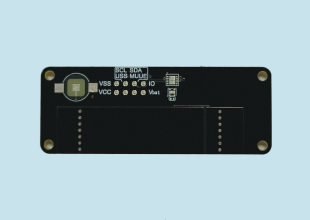

FM13DT160 temperature core
With a battery attached to the tag, the chip can use the built-in RTC to wake up at a scheduled time, start temperature measurement and record temperature data, also available Receive a single temperature measurement command from three interfaces to complete a single temperature measurement operation.
RFID temperature tag technology
Dual-frequency three-interface temperature measuring RFID tag chip
- ✔
- It has two contact and non-contact interfaces, a total of three interfaces, the contact interface adopts I2C protocol interface, the non-contact interface supports two RF interfaces of high frequency and ultra-high frequency.
- ✔
- The high-frequency interface communication protocol can be ISO14443 or ISO15693, and the UHF interface supports ISO18000-6C (EPC C1G2) protocol.
The chip supports both active and passive temperature measurement modes
- ✔
- In active mode, the chip can use the built-in RTC to wake up regularly, start temperature measurement and record temperature data, but also Receive a single temperature measurement command from three interfaces to complete a single temperature measurement operation.
- ✔
- In passive mode, the chip can use the RF field energy to receive a single temperature measurement command from three interfaces to complete the temperature measurement operation.And send back the temperature measurement results to the corresponding interface."
RFID temperature tag
RFID temperature tag application industry
Drugs, vaccines
Fresh
Blood products

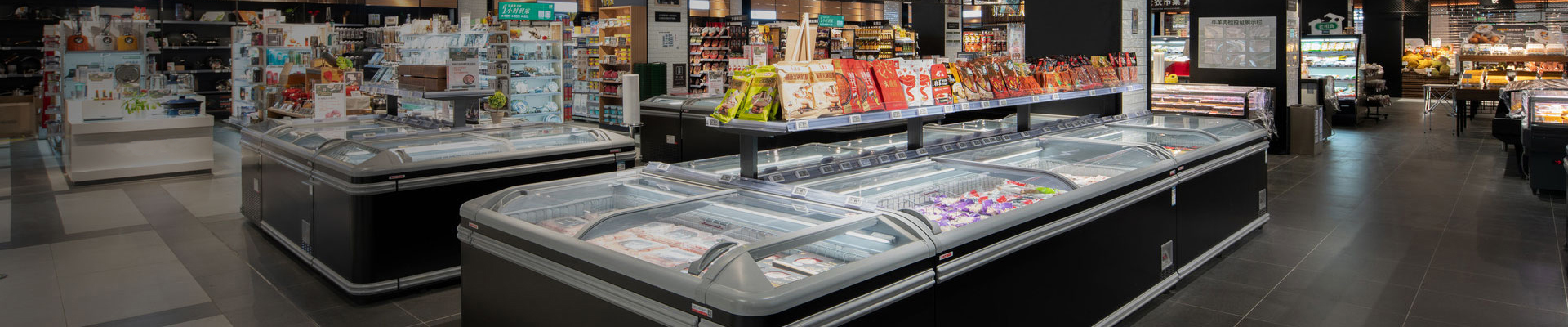

Frozen food
Contact DCRFID to get your RFID tag
We have focused on providing customized RFID solutions for more than 10 years and have a professional team that has provided RFID solutions to more han 1,580 customers in more than 10 industries. Contact us and let the experts talk to you
